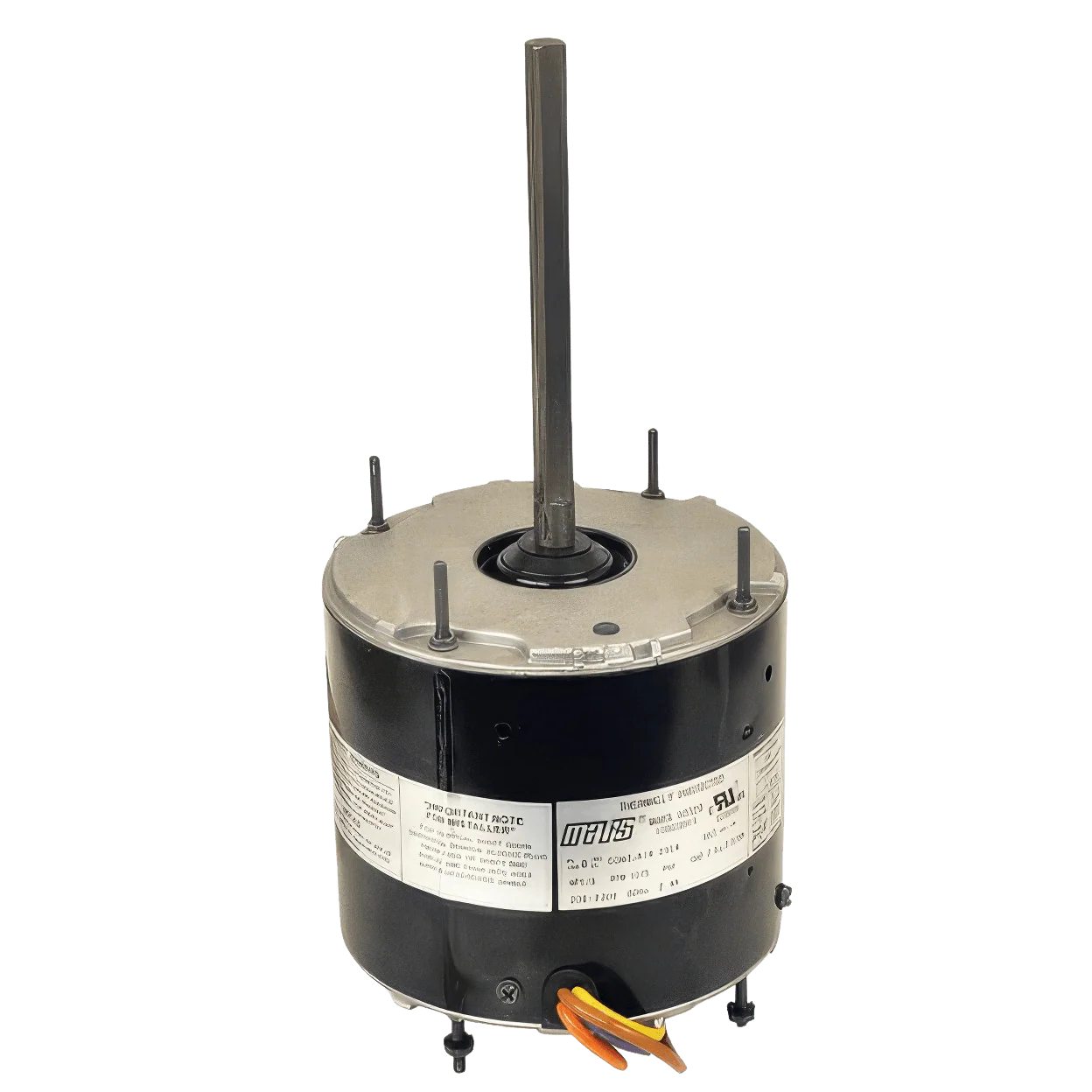

Mars Multi-Horse Power Direct Drive 1 Speed 1-Phase Reversable Condenser Fan Motor, 1/8 - 1/3 HP, 825 rpm
Mars Multi-Horse Power Direct Drive 1 Speed 1-Phase Reversable Condenser Fan Motor, 1/8 - 1/3 HP, 825 rpm
Condenser Fan Motor, Type: Multi-Horsepower, No Load RPM: 825, Enclosure Type: Totally Enclosed Air-Over, Voltage Rating: 208 to 230V, Horse Power: 1/8 to 1/3, Hertz: 60, Phase: 1, Thermal Protection: Auto, Mounting: Thru Bolt or Band, Rotation: Reversible, Ambient Temperature: 60 Deg C, Insulation Class: Class B, Shaft Diameter: 1/2 inch, Shaft Length: 6-1/2 inch, Dimensions: 5.48 inch Motor Body Length, 36 inch Lead Length, Motor Type: PSC, Bearing Type: Ball, NEMA Frame Size: 48, Full Load Ampere: 19A, Capacitor Rating: 10/370 MFD, Motor Diameter: 5-1/2 inch, Applications: For Truck Stock
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Condenser Fan Motor, Type: Multi-Horsepower, No Load RPM: 825, Enclosure Type: Totally Enclosed Air-Over, Voltage Rating: 208 to 230V, Horse Power: 1/8 to 1/3, Hertz: 60, Phase: 1, Thermal Protection: Auto, Mounting: Thru Bolt or Band, Rotation: Reversible, Ambient Temperature: 60 Deg C, Insulation Class: Class B, Shaft Diameter: 1/2 inch, Shaft Length: 6-1/2 inch, Dimensions: 5.48 inch Motor Body Length, 36 inch Lead Length, Motor Type: PSC, Bearing Type: Ball, NEMA Frame Size: 48, Full Load Ampere: 19A, Capacitor Rating: 10/370 MFD, Motor Diameter: 5-1/2 inch, Applications: For Truck Stock
