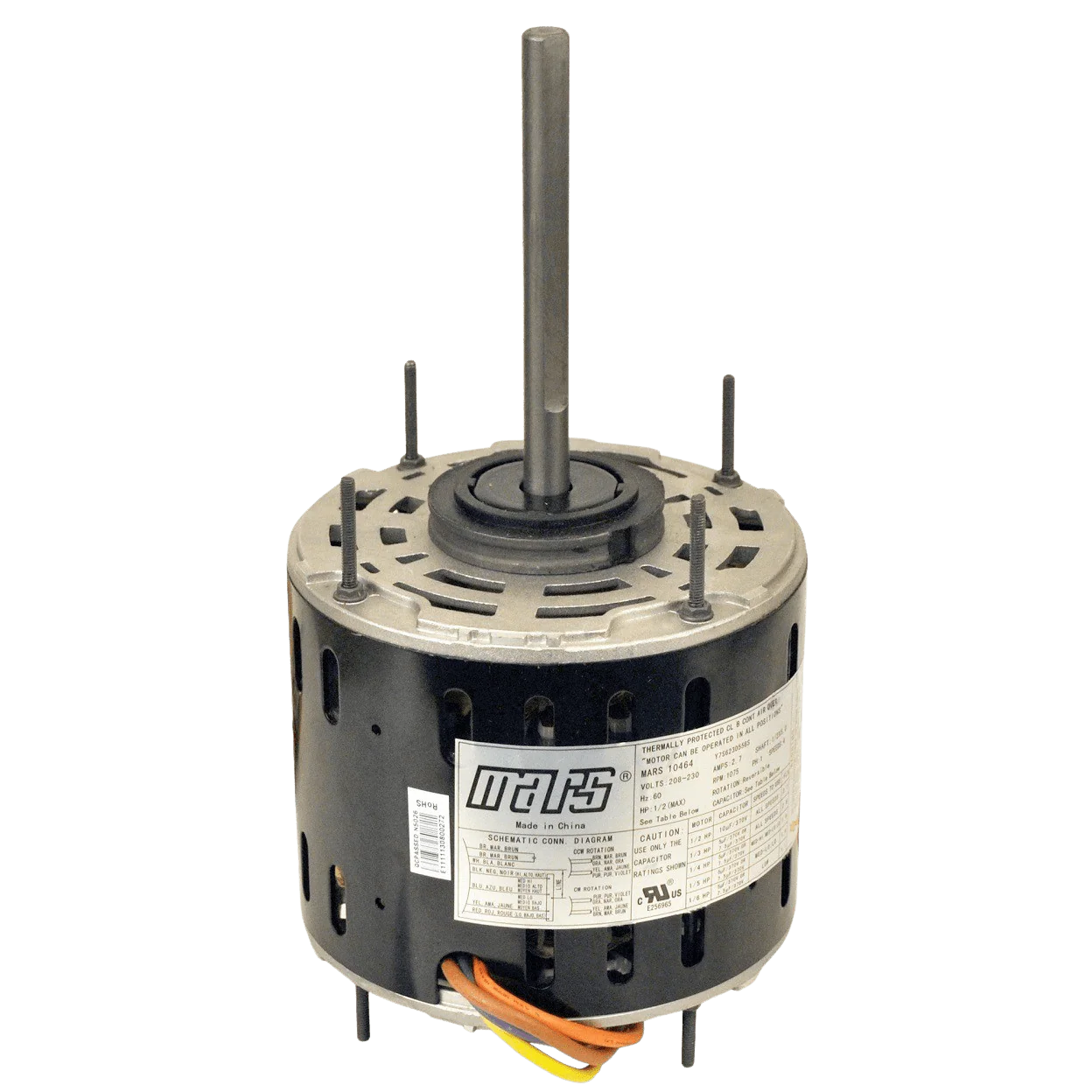

Mars Multi-Horsepower Direct Drive 4 Speed 1-Phase Reversible Blower Motor, 1075 rpm, 1/6 - 1/2 HP, 115V

Product image 1

Mars Multi-Horsepower Direct Drive 4 Speed 1-Phase Reversible Blower Motor, 1075 rpm, 1/6 - 1/2 HP, 115V

Discover the MARS multi-horsepower direct drive blower motor, designed to meet a range of HVAC needs with efficiency and reliability. These versatile motors are perfect for truck stock and offer four models to cover both 115V and 208-230V applications, ranging from 1/6 HP to 3/4 HP. Each multi-horsepower motor is equipped with Rheem shell mounting holes for easy installation and compatibility. Enhance your equipment's performance with MARS, a trusted name in high-quality blower motors.

Features:
Rheem mounting holes with screws installed
4 Speed
Single Phase, Sleeve Bearing
Torsion mount sleeves and grommets included
Thermally Protected
41 inch Leads

Technical Specifications:
No. of Poles: 6
Motor Type: PSC
Enclosure: OAO
HP (Max.): 1/2
Voltage: 115
Mounting: Belly Band, Resilient Ring
Speeds: 4
Hz: 60
Rotation: REV
Multi-Rated HP: 1/6-1/2
RPM Range: 1075
NEMA Frame Size: 48
Phase: Single
Standards: CUL
FLA: 6.2
Bearing: Sleeve
Lead Length: 41 inch
Thermal Protection: Auto
Ambient: 40 Deg C
Ins. Class: B
Shaft Dia.: 1/2 inch
Capacitor Included: No
Shaft Length: 5.5 inch
Capacitor Rating: 15/7.5/5/370
Service Factor: 1.0
Duty: Continuous
