Mars Direct Drive 3-Speed 1-Phase Reversible Furnace Blower Motor, 1075 rpm, 1/3 HP, 115V

Product image 1

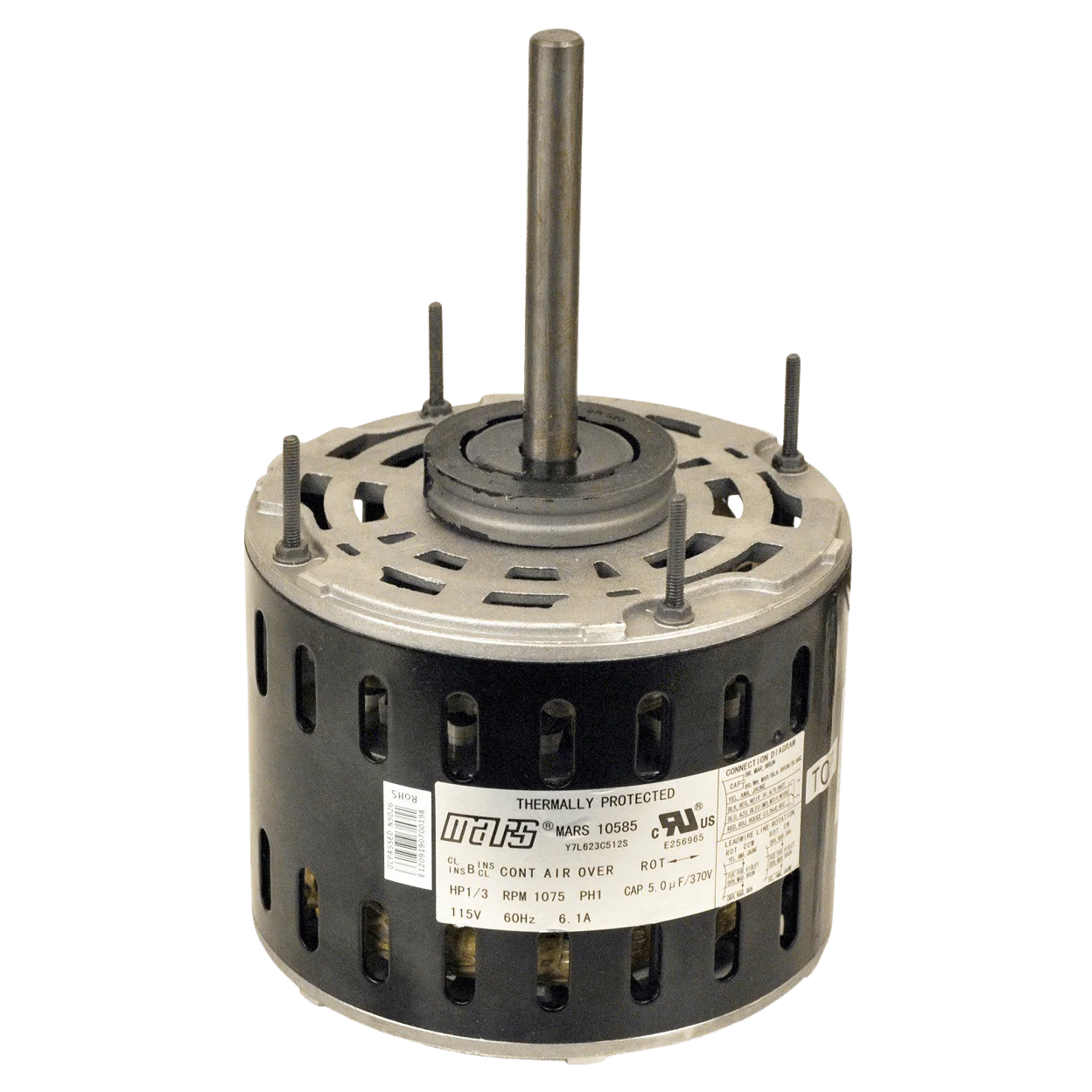

Mars Direct Drive 3-Speed 1-Phase Reversible Furnace Blower Motor, 1075 rpm, 1/3 HP, 115V

The Mars Direct Drive Blower Motor features a 3-speed, 1-phase reversible design, delivering 1075 rpm and 1/3 HP at 115V. Ideal for tradespeople and DIY enthusiasts seeking reliability and performance in ventilation tasks.

Features:

  • Rheem mounting holes
  • Extended thru bolts shaft end
  • 3 Speed, Single Phase
  • Sleeve Bearing
  • Capacitor required: 5 MFD 370V
  • (2)2-1/4 & (2)2-1/2 Resilient Rings
  • Thermal protected, air over
  • 36 inch Leads

Technical Specifications:

  • No. of Poles: 6
  • Motor Type: PSC
  • Enclosure: OAO
  • HP (Max.): 1/3
  • Voltage: 115
  • Mounting Belly Band, Resilient Ring
  • Speeds: 3
  • Hz: 60
  • Rotation: REV
  • RPM Range: 1075
  • NEMA Frame Size; 48
  • Phase: Single
  • Standards: CUL
  • FLA: 6.1
  • Bearing: Sleeve
  • Lead Length: 36 inch
  • Thermal Protection: Auto
  • Ambient Deg C: 40
  • Ins. Class: B
  • Capacitor Included: No
  • Shaft Dia.: 1/2 inch
  • Shaft Length: 4.5 inch
  • Capacitor Rating: 5/370
  • Service Factor: 1.0
  • Duty: Continuous
Select Style
From $39.43

Original: $112.67

-65%
Mars Direct Drive 3-Speed 1-Phase Reversible Furnace Blower Motor, 1075 rpm, 1/3 HP, 115V—

$112.67

$39.43

Product Information

Shipping & Returns

Description

The Mars Direct Drive Blower Motor features a 3-speed, 1-phase reversible design, delivering 1075 rpm and 1/3 HP at 115V. Ideal for tradespeople and DIY enthusiasts seeking reliability and performance in ventilation tasks.

Features:

  • Rheem mounting holes
  • Extended thru bolts shaft end
  • 3 Speed, Single Phase
  • Sleeve Bearing
  • Capacitor required: 5 MFD 370V
  • (2)2-1/4 & (2)2-1/2 Resilient Rings
  • Thermal protected, air over
  • 36 inch Leads

Technical Specifications:

  • No. of Poles: 6
  • Motor Type: PSC
  • Enclosure: OAO
  • HP (Max.): 1/3
  • Voltage: 115
  • Mounting Belly Band, Resilient Ring
  • Speeds: 3
  • Hz: 60
  • Rotation: REV
  • RPM Range: 1075
  • NEMA Frame Size; 48
  • Phase: Single
  • Standards: CUL
  • FLA: 6.1
  • Bearing: Sleeve
  • Lead Length: 36 inch
  • Thermal Protection: Auto
  • Ambient Deg C: 40
  • Ins. Class: B
  • Capacitor Included: No
  • Shaft Dia.: 1/2 inch
  • Shaft Length: 4.5 inch
  • Capacitor Rating: 5/370
  • Service Factor: 1.0
  • Duty: Continuous
