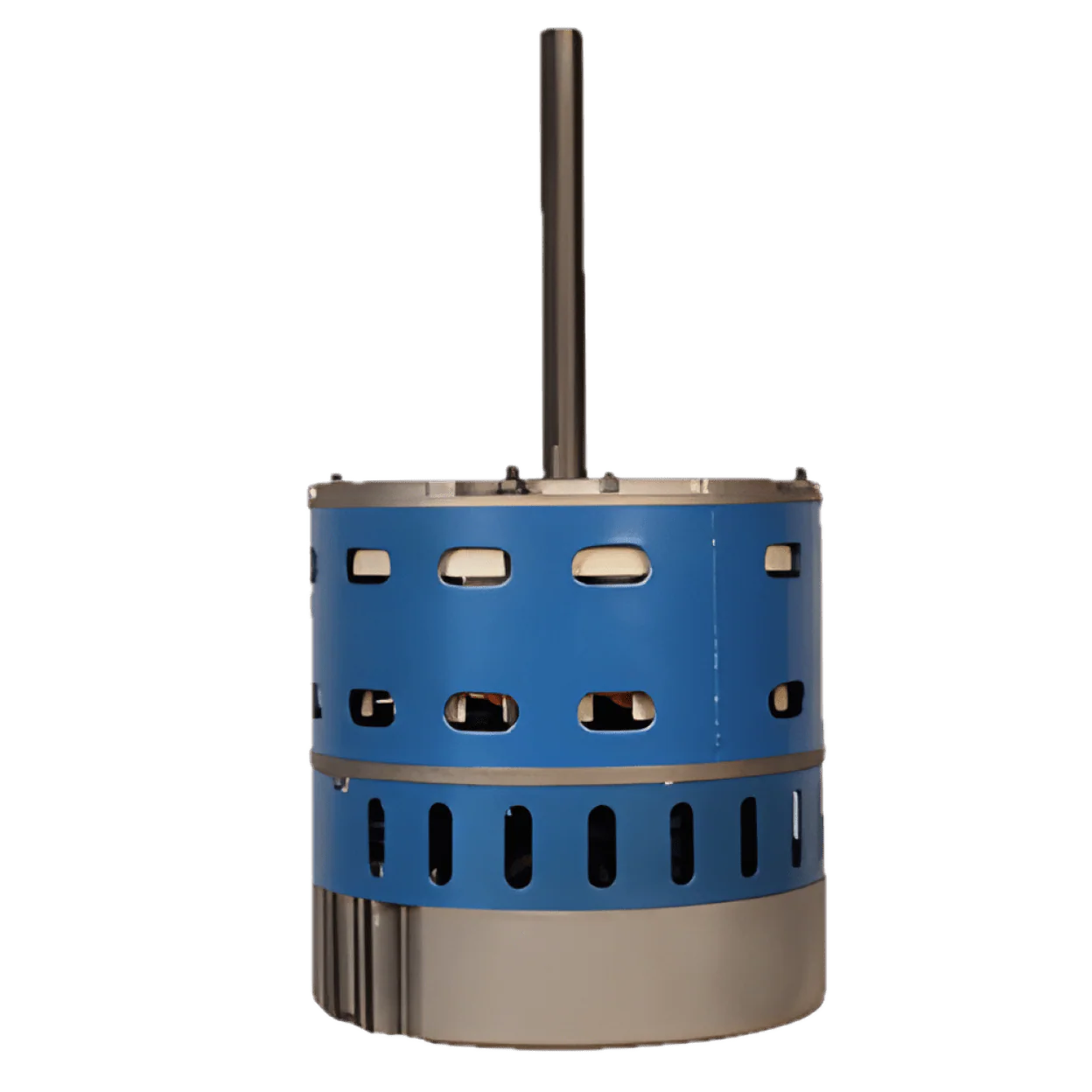

Azure® ECM from MARS is a high efficiency variable speed direct drive blower motor for a multitude of applications. Azure® is a replacement for both standard PSC and Constant Torque motors. These motors cover ratings from 1/5 HP to 1 HP at 115V or 230V and CW or CCW.

Features:
Connects directly to OEM harnesses
Ball bearing, Thermal Overload Protection
Multi-HP Dual Voltage
4 speeds plus 625 RPM constant fan mode
Airflow Adjustment - 08502 Hand Held Programmer
High efficiency 85%
Ultimate Truck Stock
Replaces PSC and Constant Torque

Technical Specifications:
Motor Type: ECM
Enclosure: OAO
HP (Max.): 1
Voltage: 120/240
Mounting: Belly Band
Speeds: 5
Hz: 60/50
Rotation: REV+FWD
Multi-Rated HP: 1/2-1
RPM Range: Constant Torque
NEMA Frame Size: 48
Phase: Single
Standards: CUL
FLA: 11.5/7.0
Bearing: Ball
Lead Length: 15.75 inch
Thermal Protection: REDUNDANT Electronic Control CIRCUITS
Ambient: 55 Deg C
Ins. Class: B
Shaft Dia.: 1/2 inch
Capacitor Included: No
Shaft Length: 4.94 inch
Replaces: PSC/X13
Duty: Continuous
