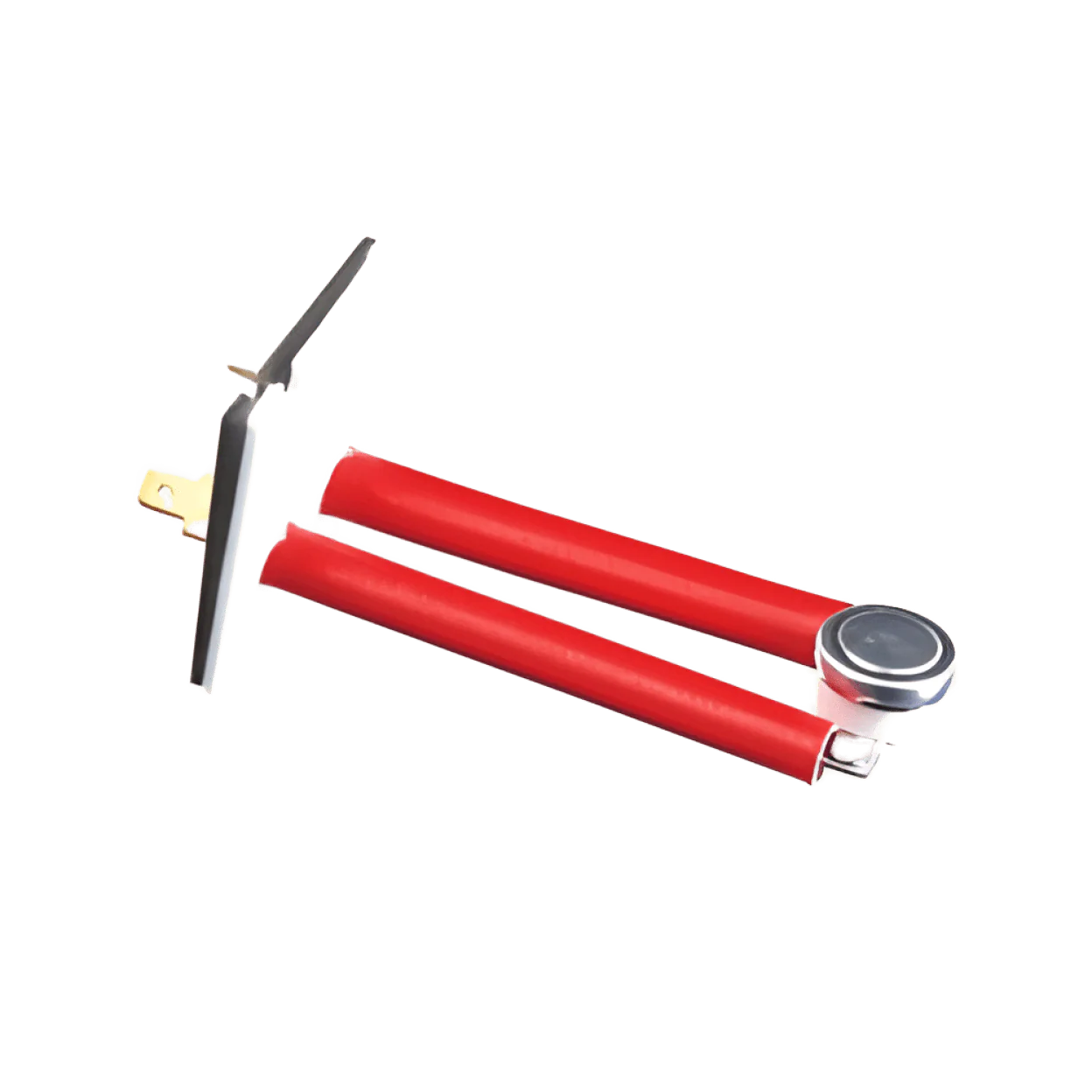

Rheem 120/230V 10/15A SPST Normally Closed Auto Reset Limit Control
Limit Control, Series: 36T, Type: Auto Reset, Voltage Rating: 120/230V, Amperage Rating: 10/15A, Number of Poles: 1, Operating Temperature: 160 Deg F Open/140 Deg F Close, Switch Type: SPST, Connection: 3/16 inch Quick Connect, Mounting: 90 deg Strap Board, Contact Orientation: Normally Closed, Disc Face: Enclosed, Mounting Board Dimensions: 1-9/16 inch x 1-3/4 inch, Mounting Insertion Depth: 3 inch, Nominal Temperature Difference: 20 Deg F, Color: Red/Red, Open Temperature Tolerance: +/-5 psig, Close Temperature Tolerance: +/-7 psig
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Limit Control, Series: 36T, Type: Auto Reset, Voltage Rating: 120/230V, Amperage Rating: 10/15A, Number of Poles: 1, Operating Temperature: 160 Deg F Open/140 Deg F Close, Switch Type: SPST, Connection: 3/16 inch Quick Connect, Mounting: 90 deg Strap Board, Contact Orientation: Normally Closed, Disc Face: Enclosed, Mounting Board Dimensions: 1-9/16 inch x 1-3/4 inch, Mounting Insertion Depth: 3 inch, Nominal Temperature Difference: 20 Deg F, Color: Red/Red, Open Temperature Tolerance: +/-5 psig, Close Temperature Tolerance: +/-7 psig
