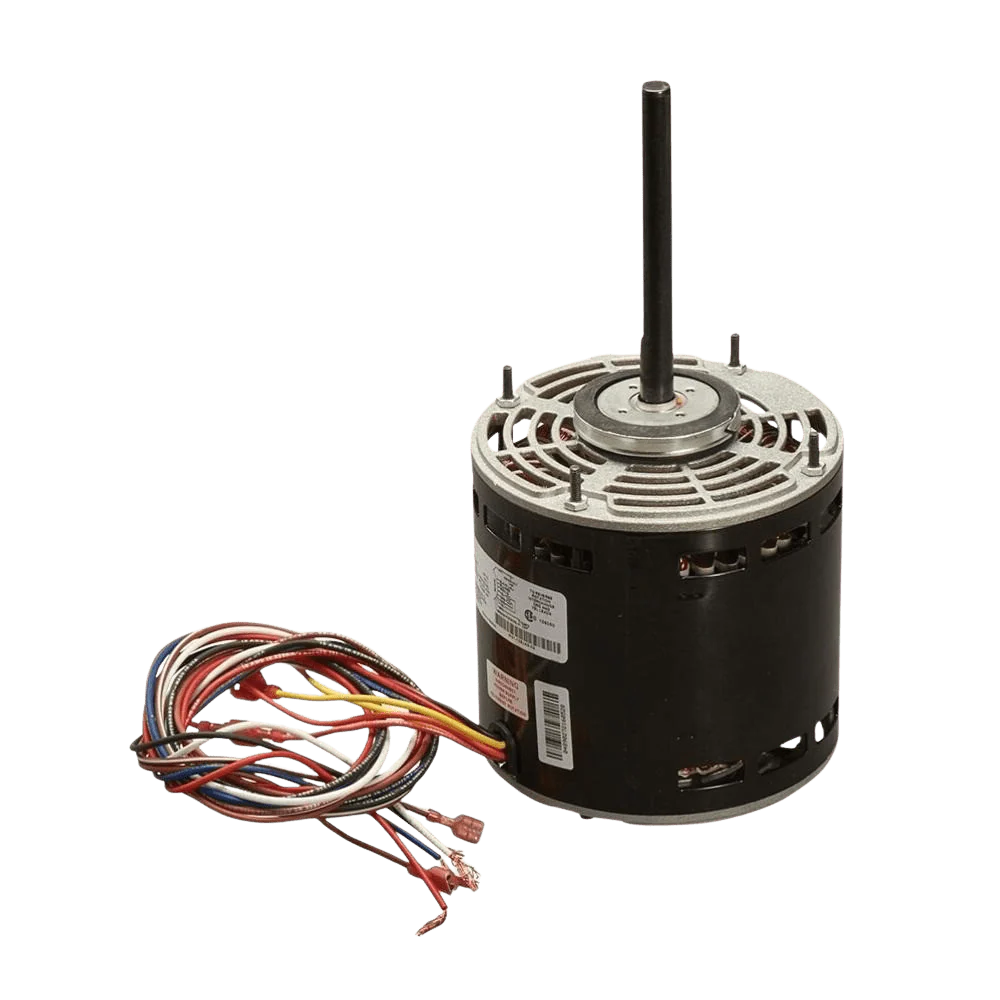

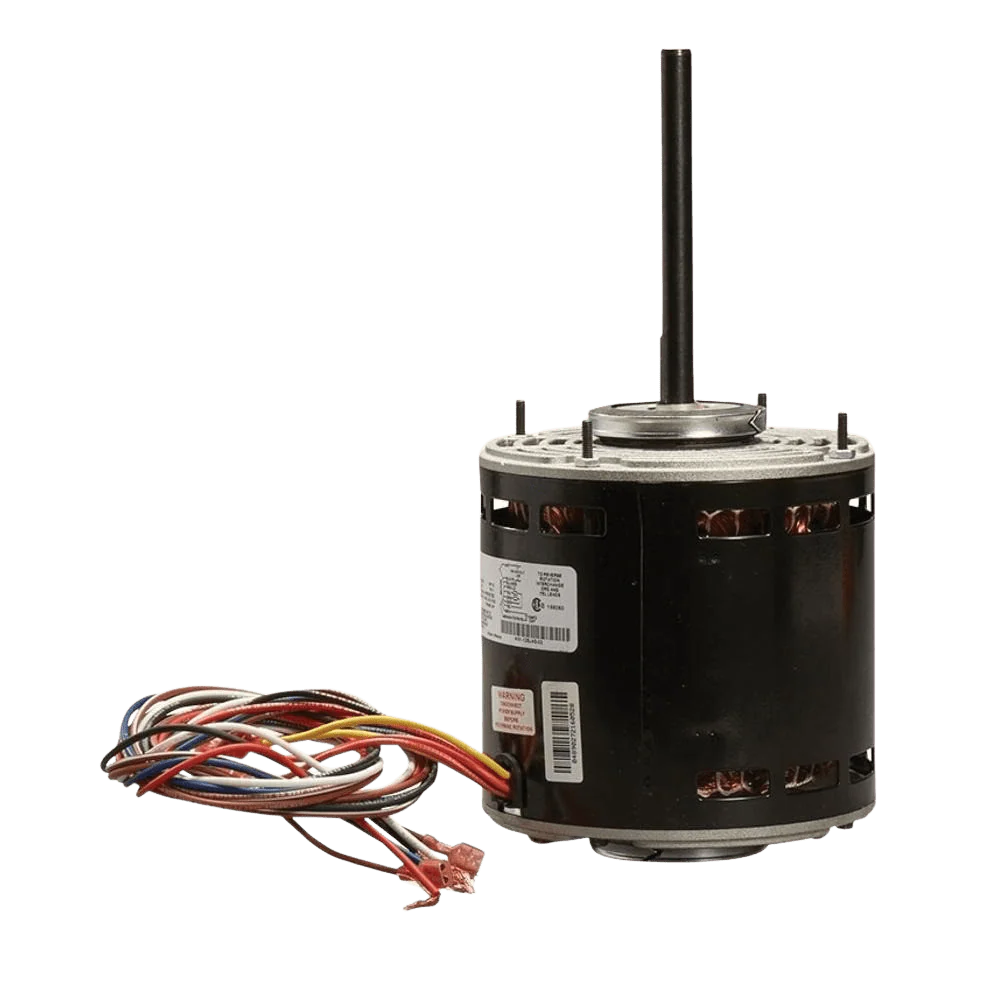

The Rheem TrueLine PSC Blower Motor is engineered for superior performance and durability in residential and light commercial HVAC systems. Designed to thrive in high-humidity environments, this motor features corrosion-resistant construction, varnish-dipped windings, and a unique rotor treatment for extended lifespan and reliable operation.

This 1/2 HP Rheem blower motor operates at 208/230 volts, 2.7 amps, and 60 Hz, offering three-speed performance (1075 RPM) and reversible rotation for flexible installation. The 48 frame size, direct drive, and shell-band mounting design ensure a secure fit and smooth airflow in your Rheem unit.

Built with a 1/2 inch diameter shaft (5 inch length), sleeve bearing, and thru-bolt mounting, this motor provides quiet operation and dependable performance. It also includes a 10/370 uF/V run capacitor and supports keyed/flat shaft compatibility.

Key Specifications:

• Brand: Rheem
• Model: TrueLine PSC Blower Motor
• Application: Indoor Blower Motor
• Horsepower: 1/2 HP
• Voltage: 208/230V
• Amperage: 2.7A
• Frequency: 60 Hz
• Phase: 1
• Speed: 3-Speed, 1075 RPM
• Frame Size: 48
• Shaft: 1/2 inch Dia x 5 inch L
• Bearing Type: Sleeve
• Mounting: Shell-Band / Thru-Bolt
• Rotation: Reversible
• Capacitor: 10/370 uF/V
• Overall Width: 5-5/8 inch
• Dimensions (L): 11-3/8 inch
• Drive Type: Direct Drive

Upgrade your system with the Rheem TrueLine 1/2 HP PSC blower motor — the perfect balance of durability, efficiency, and trusted Rheem quality.
