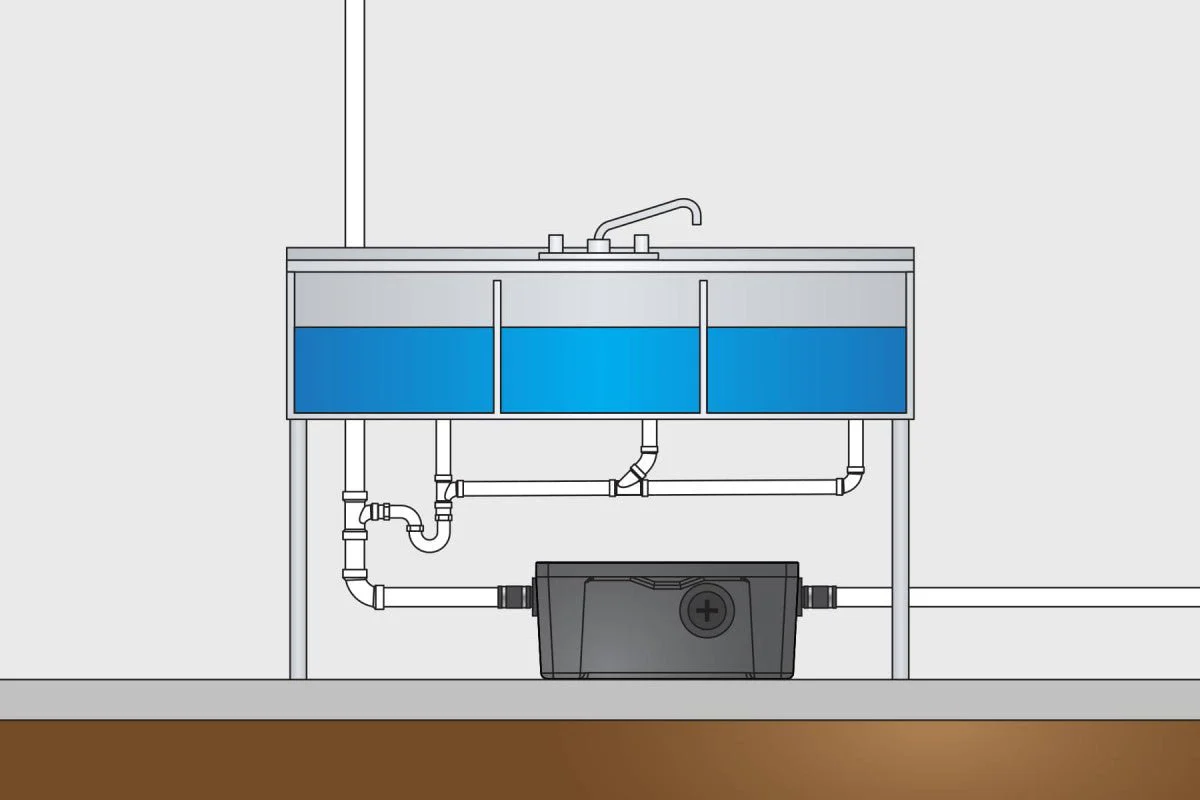

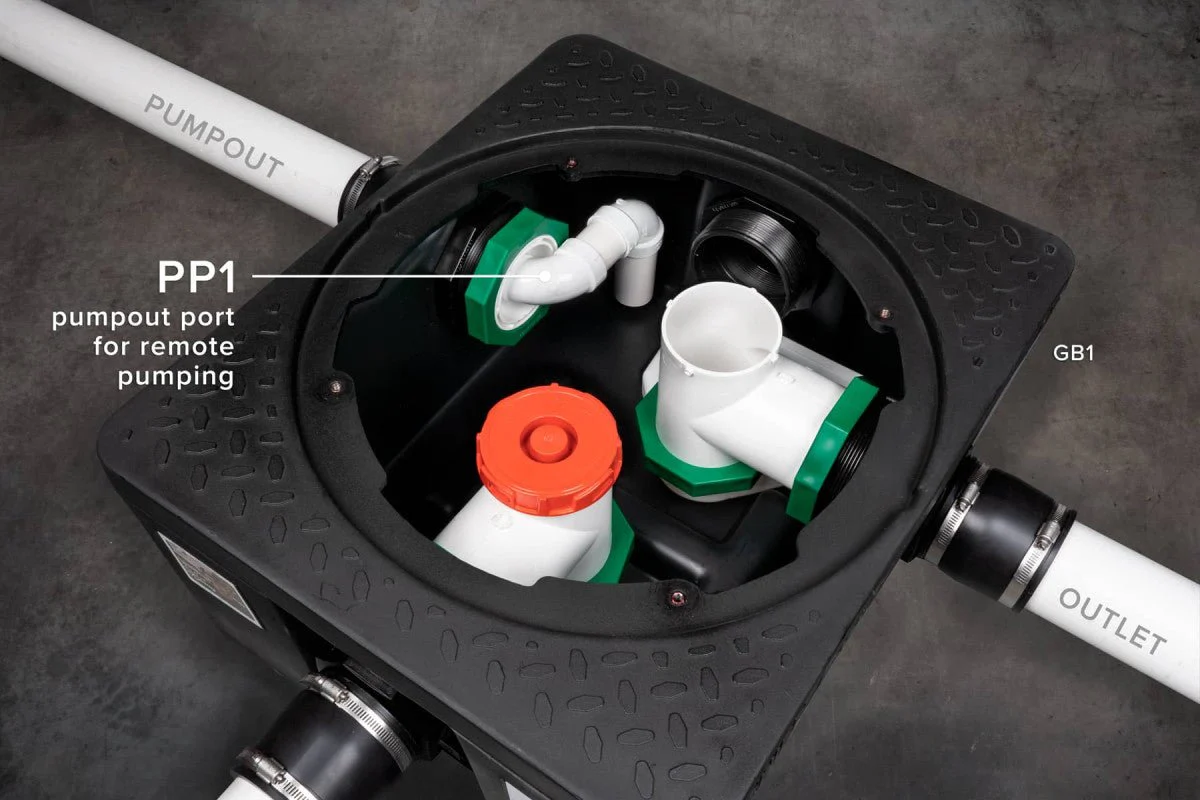

The compact design of the GB1 makes it a perfect fit for under-the-sink installations. It can be installed above grade (on the floor) or buried below grade (compatible with FCR1 riser to bring system to grade). The triple outlet feature allows for installation flexibility, including the ability to connect an unused outlet for remote pump out (PP1 compatibility).

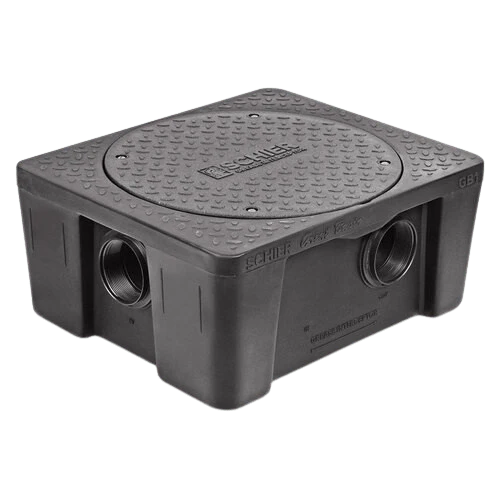

• Rugged polyethylene tank

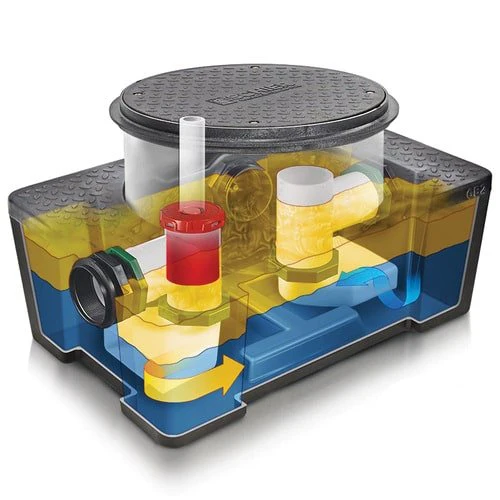

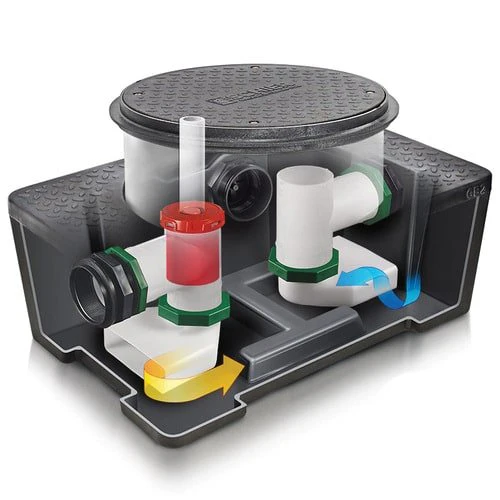

• Built-in flow control Cartridge, easy-to-remove for cleaning
• Compact design that installs under sinks, on the floor or buried below grade
• Built-in triple outlet for installation flexibility
• Includes plain end fittings to connect to 2 inch and 3 inch pipe
• Uses FCR1 field cut riser system for a maximum extension of 25 inch
• Flow Rate/Grease Capacity: 20 GPM (1.3 L/s) / 70 lbs (31.7 kg), 25 GPM (1.6 L/s) / 64 lbs (29 kg)
• Solids Capacity 1.3 gal (4.9 L), Liquid Capacity 10 gal (37.9 L)
• Weight: 39 lbs (17.7 kg)
• Installation Location Indoor
