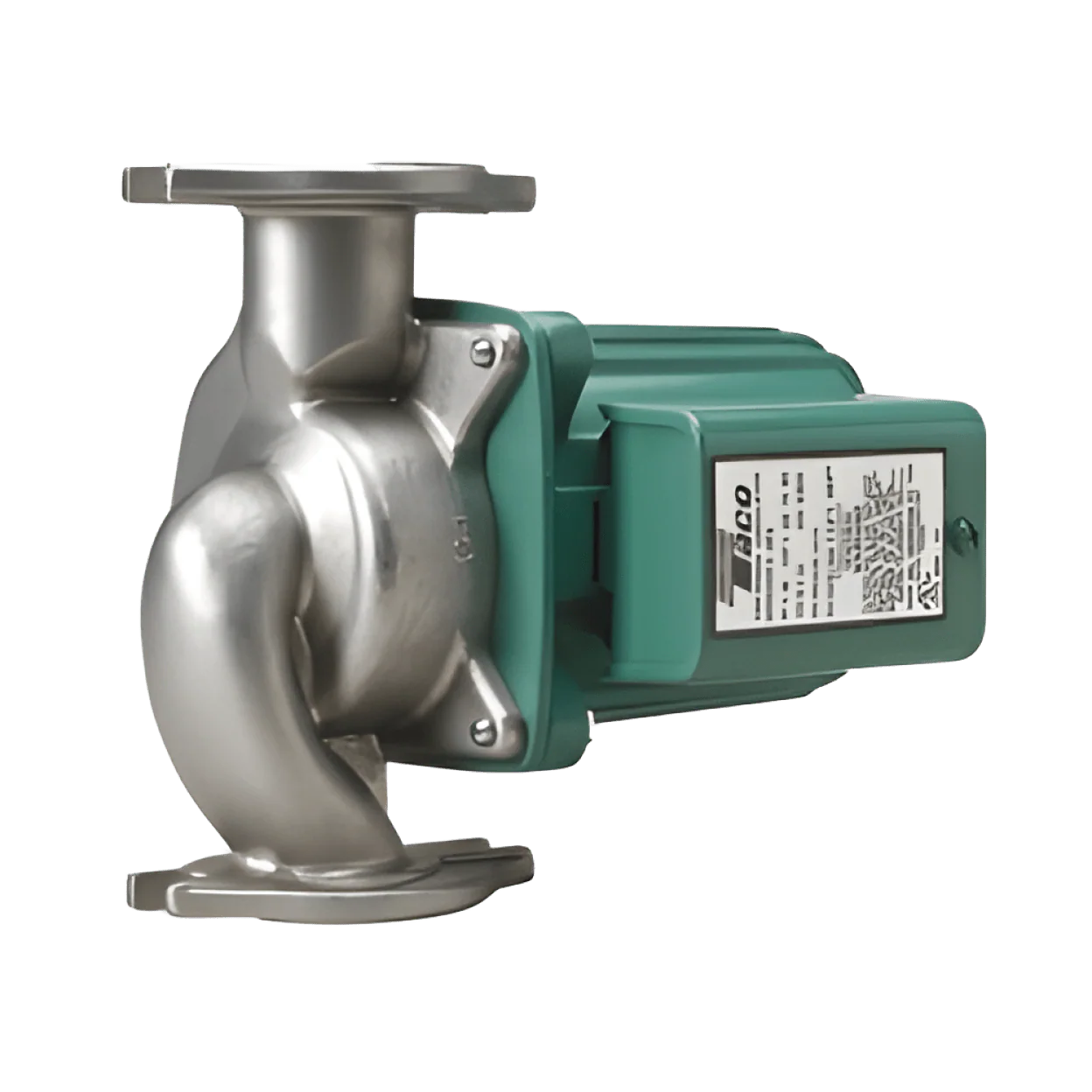

Taco 005 Series 115VAC 1/35 HP 9 ft max Head 19 gpm Stainless Steel Circulator Pump
Circulator Pump, Series: 005, Power Rating: 1/35 HP, Best Efficiency GPM at Head (ft.): 11 gpm at 7 ft, Connection: Flange, Drive Type: Direct, Maximum Head: 9 ft, Housing Material: Stainless Steel, Impeller Material: Noryl®, Inlet/Outlet: 3/4 - 1-1/2 inch, Temperature Rating: 40 - 220 Deg F Fluid, Pressure Rating: 125 psi max, Maximum Flow Rate: 19 gpm, Phase: 1, Shaft Material: Ceramic, Number of Speed: 1, Thermal Protection: Impedance, Mount Type: In Line, Voltage Rating: 115VAC, Ampere Rating: 0.54A, Frequency Rating: 60 Hz, Length: 5-5/8 inch, Width: 4-3/4 inch, Height: 6-3/8 inch, Manufacturer Warranty: 3 yr, Includes: Flange Gaskets, Applications: For Hydronic Heating/Cooling, Radiant, Indirect Water Heaters, Hydro-Air Fan Coils, Domestic Water Recirculation, Solar Thermal Systems, Standards/Approvals: cULus Listed, NSF/ANSI 372
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Circulator Pump, Series: 005, Power Rating: 1/35 HP, Best Efficiency GPM at Head (ft.): 11 gpm at 7 ft, Connection: Flange, Drive Type: Direct, Maximum Head: 9 ft, Housing Material: Stainless Steel, Impeller Material: Noryl®, Inlet/Outlet: 3/4 - 1-1/2 inch, Temperature Rating: 40 - 220 Deg F Fluid, Pressure Rating: 125 psi max, Maximum Flow Rate: 19 gpm, Phase: 1, Shaft Material: Ceramic, Number of Speed: 1, Thermal Protection: Impedance, Mount Type: In Line, Voltage Rating: 115VAC, Ampere Rating: 0.54A, Frequency Rating: 60 Hz, Length: 5-5/8 inch, Width: 4-3/4 inch, Height: 6-3/8 inch, Manufacturer Warranty: 3 yr, Includes: Flange Gaskets, Applications: For Hydronic Heating/Cooling, Radiant, Indirect Water Heaters, Hydro-Air Fan Coils, Domestic Water Recirculation, Solar Thermal Systems, Standards/Approvals: cULus Listed, NSF/ANSI 372
