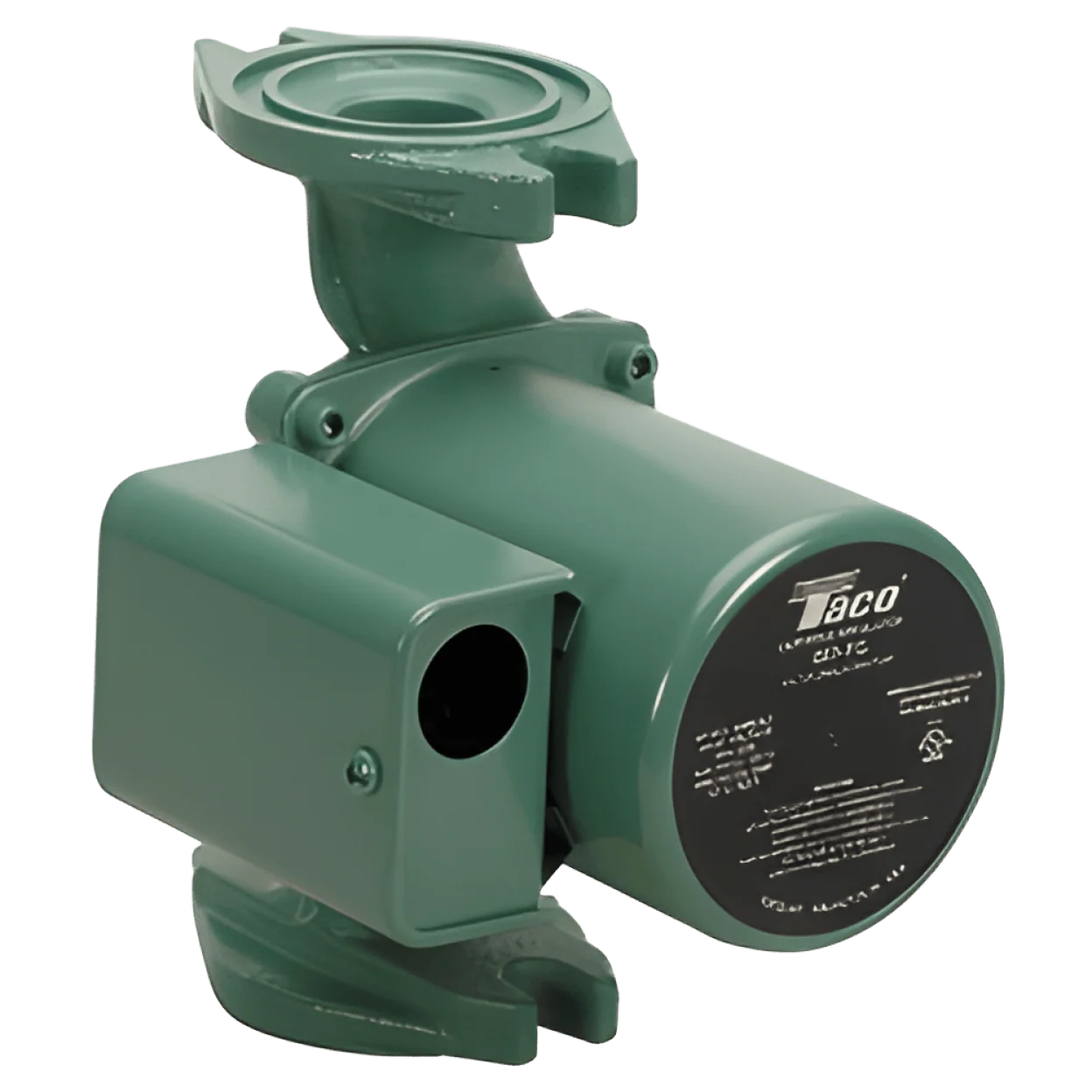

Taco 007 Series 115VAC 1/25 HP 10 ft max Head 23 gpm Cast Iron Circulator Pump
Circulator Pump, Series: 007, Power Rating: 1/25 HP, Best Efficiency GPM at Head (ft.): 12 gpm at 7 ft, Connection: Flange, Drive Type: Direct, Maximum Head: 10 ft, Housing Material: Cast Iron, Impeller Material: Polypropylene, Inlet/Outlet: 3/4 - 1-1/2 inch, Temperature Rating: 40 - 240 Deg F Fluid, Pressure Rating: 125 psi max, Maximum Flow Rate: 23 gpm, Phase: 1, Shaft Material: Ceramic, Number of Speed: 1, Thermal Protection: Impedance, Mount Type: In Line, Voltage Rating: 115VAC, Ampere Rating: 0.7A, Frequency Rating: 60 Hz, Length: 6-3/8 inch, Width: 4-3/4 inch, Height: 6-3/8 inch, Manufacturer Warranty: 3 yr, Includes: Flange Gaskets, Applications: For Hydronic Heating, Radiant Heating, Hydro-Air Fan Coils, Indirect Water Heaters, Chilled Fresh Water, and Domestic Water Recirculation Systems, Standards/Approvals: cULus Listed, NSF/ANSI 372
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Circulator Pump, Series: 007, Power Rating: 1/25 HP, Best Efficiency GPM at Head (ft.): 12 gpm at 7 ft, Connection: Flange, Drive Type: Direct, Maximum Head: 10 ft, Housing Material: Cast Iron, Impeller Material: Polypropylene, Inlet/Outlet: 3/4 - 1-1/2 inch, Temperature Rating: 40 - 240 Deg F Fluid, Pressure Rating: 125 psi max, Maximum Flow Rate: 23 gpm, Phase: 1, Shaft Material: Ceramic, Number of Speed: 1, Thermal Protection: Impedance, Mount Type: In Line, Voltage Rating: 115VAC, Ampere Rating: 0.7A, Frequency Rating: 60 Hz, Length: 6-3/8 inch, Width: 4-3/4 inch, Height: 6-3/8 inch, Manufacturer Warranty: 3 yr, Includes: Flange Gaskets, Applications: For Hydronic Heating, Radiant Heating, Hydro-Air Fan Coils, Indirect Water Heaters, Chilled Fresh Water, and Domestic Water Recirculation Systems, Standards/Approvals: cULus Listed, NSF/ANSI 372
