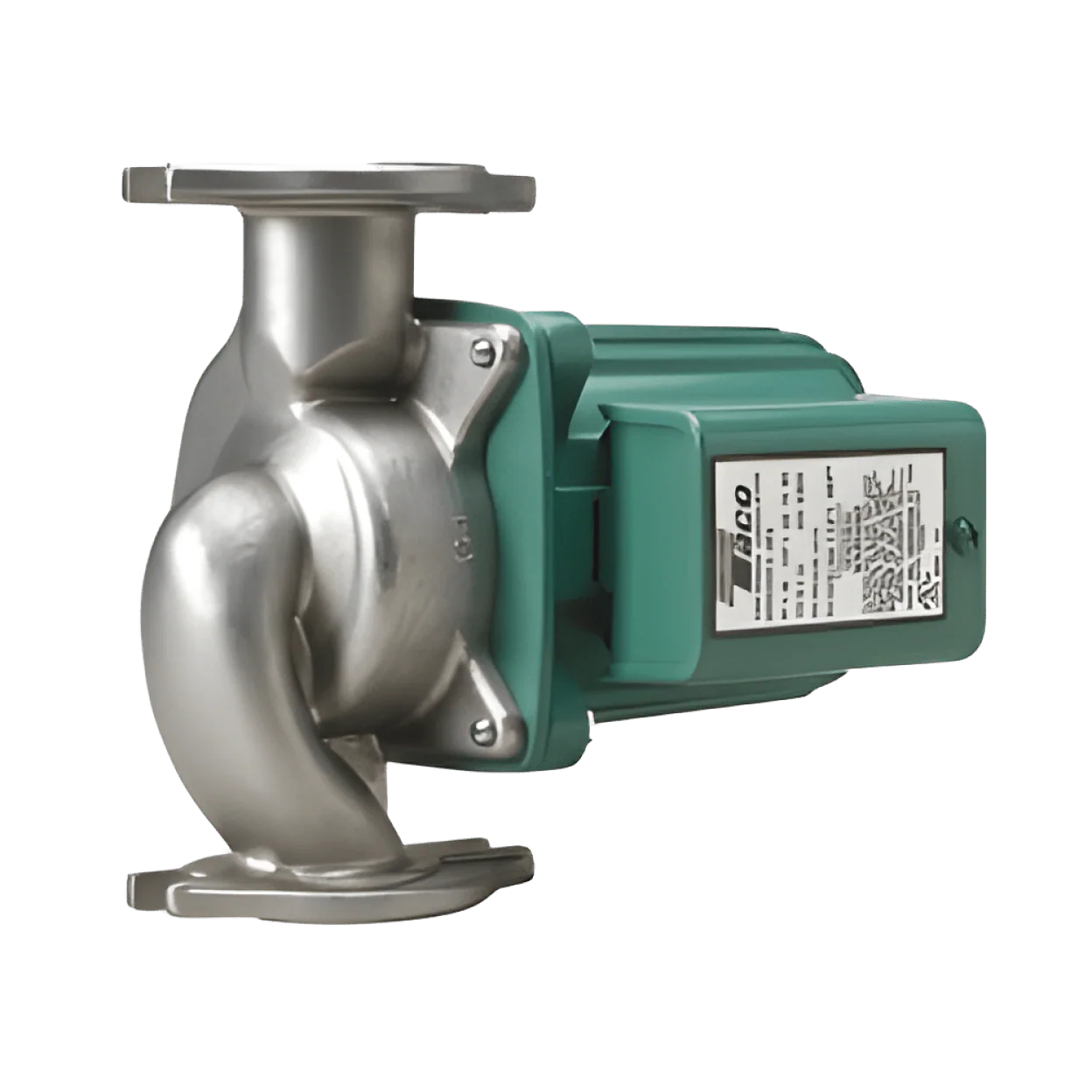

Taco 008 Series 115VAC 1/25 HP 16 ft max Head 14 gpm Stainless Steel Circulator Pump
Circulator Pump, Series: 008, Power Rating: 1/25 HP, Best Efficiency GPM at Head (ft.): 10 gpm at 8 ft, Connection: Flange, Drive Type: Direct, Maximum Head: 16 ft, Housing Material: Stainless Steel, Impeller Material: Noryl®, Inlet/Outlet: 3/4 - 1-1/2 inch, Temperature Rating: 40 - 230 Deg F Fluid, Pressure Rating: 125 psi max, Maximum Flow Rate: 14 gpm, Phase: 1, Shaft Material: Ceramic, Number of Speed: 1, Thermal Protection: Impedance, Mount Type: In Line, Voltage Rating: 115VAC, Ampere Rating: 0.84A, Frequency Rating: 60 Hz, Length: 6 inch, Width: 4-3/4 inch, Height: 6-3/8 inch, Manufacturer Warranty: 3 yr, Includes: Flange Gaskets, Applications: For a Wide Range of Residential and Light Commercial Higher Head Water Circulating Applications, Hydronic Heating, Radiant In-Floor/Panel Heating and Closed Loop Solar Heating Systems, Standards/Approvals: cULus Listed
Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Circulator Pump, Series: 008, Power Rating: 1/25 HP, Best Efficiency GPM at Head (ft.): 10 gpm at 8 ft, Connection: Flange, Drive Type: Direct, Maximum Head: 16 ft, Housing Material: Stainless Steel, Impeller Material: Noryl®, Inlet/Outlet: 3/4 - 1-1/2 inch, Temperature Rating: 40 - 230 Deg F Fluid, Pressure Rating: 125 psi max, Maximum Flow Rate: 14 gpm, Phase: 1, Shaft Material: Ceramic, Number of Speed: 1, Thermal Protection: Impedance, Mount Type: In Line, Voltage Rating: 115VAC, Ampere Rating: 0.84A, Frequency Rating: 60 Hz, Length: 6 inch, Width: 4-3/4 inch, Height: 6-3/8 inch, Manufacturer Warranty: 3 yr, Includes: Flange Gaskets, Applications: For a Wide Range of Residential and Light Commercial Higher Head Water Circulating Applications, Hydronic Heating, Radiant In-Floor/Panel Heating and Closed Loop Solar Heating Systems, Standards/Approvals: cULus Listed
