Genesis 18 AWG 1000 ft Shielded Low Voltage Cable
Power your low-voltage systems with confidence using the Genesis 18 AWG Shielded Low Voltage Cable. Designed for security systems, intercoms, speakers, and communication wiring, this high-quality cable offers dependable signal transmission and superior protection from electrical interference.

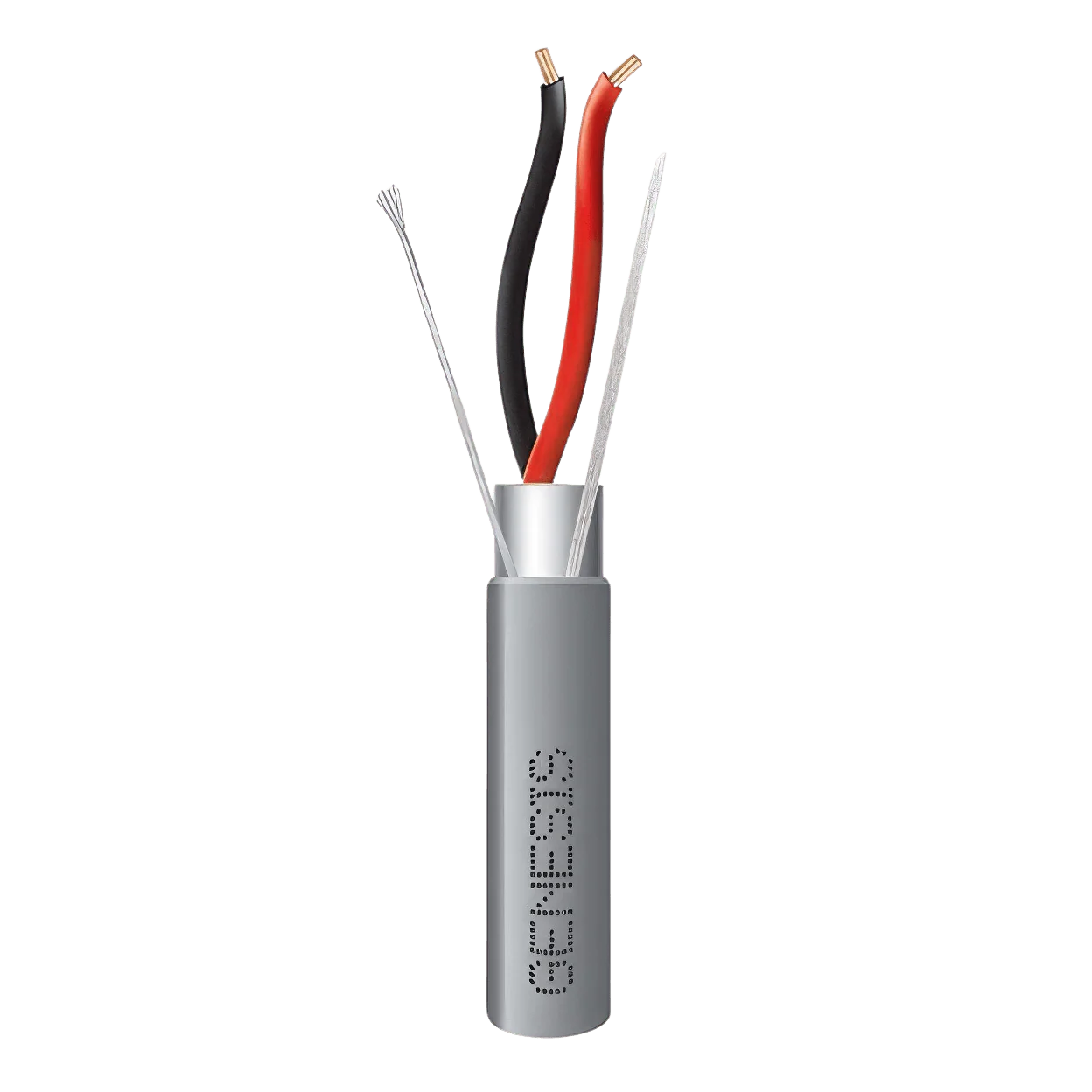

This 2-conductor stranded copper cable features bare stranded copper conductors (19/0.0092) for flexibility and strong conductivity. The aluminum Mylar shield and 24 AWG tinned copper drain wire provide extra protection against EMI and signal loss, ensuring clear, uninterrupted performance.
Encased in a durable gray PVC jacket, this cable is rated for 300 volts and is both CMR/CL2R/FT4 compliant — making it safe for use in walls, risers, and general low-voltage applications. The polypropylene insulation provides added durability and consistent signal quality, while the stranded wire design allows for easy installation and routing through tight spaces.
With a temperature range of -20°C to +60°C, the Genesis Low Voltage Cable performs reliably in various indoor environments, from residential to commercial setups.
Key Features:
- Brand: Genesis
- Series: GENESIS
- Type: CMR/CL2R/FT4 Shielded Low Voltage Cable
- Conductor Size: 18 AWG
- Number of Conductors: 2 (Stranded)
- Conductor Material: Bare Stranded Copper (19/0.0092)
- Length: 1000 ft
- Voltage Rating: 300VAC
- Shield: Aluminum Mylar Tape with 24 AWG Tinned Copper Drain Wire
- Jacket Material: PVC, Gray Color
- Insulation Material: Polypropylene
- Jacket Thickness: 0.015" (Nominal)
- Insulation Thickness: 0.006" (Nominal)
- Outside Diameter: 0.154" (Nominal)
- Temperature Rating: -20°C to +60°C
- Capacitance: 42 pF/ft
- Impedance: 37 Ohm
- Resistance: 6.5 Ohm @ 20°C
- Standards/Certifications: UL Standards 13 & 444, NEC Articles 725 & 800, CSA C22.2 No. 214
Applications:
Perfect for burglar alarms, security systems, intercoms, telephone wiring, and speaker installations. Designed for low-voltage electrical connections where signal clarity and reliability matter most.
Benefits:
- Shielded design reduces noise and interference
- Flexible stranded copper conductors for easy installation
- Durable PVC jacket for long-lasting protection
- Meets major UL, NEC, and CSA safety standards
- Ideal for home or commercial low-voltage wiring projects
